When you send a transaction to the Ethereum blockchain, where does it go? What is a pending transaction and what happens before it gets mined? What is a mempool? Why do some of my transactions succeed and others fail?

We’ll take a deep dive into the flow of a transaction on the Ethereum network, from the moment you hit “send” to the point when the transaction becomes fully mined. We’ll discuss what might go wrong and how Alchemy’s suite of developer tools might help you debug and gain visibility into this process.

Though this guide is Ethereum-specific, the core principles will apply to basically all blockchains!

An Ethereum transaction, in its simplest form, is a request from a user to encode new information onto the permanent state of the blockchain. The contents of this request typically take one of a few forms:

  1. A simple transfer of value from the user’s public account to another party (e.g. sending ETH to a merchant)

  2. Encoding a new smart contract onto the public blockchain that can be accessed by other third parties (e.g. starting a new lottery smart contract)

  3. Sending information to an existing smart contract to engage with the contract (e.g. entering your name and funds into a lottery smart contract)

Before we can understand the transaction flow in Ethereum, first we need to understand what the mempool is! A mempool is a waiting room in an Ethereum node for unconfirmed transactions, configured specifically to act as a staging area. Depending on the client you’re using, it might also be called a TX-POOL or TX-QUEUE.

Transactions sent to a node will first land in the mempool, and will remain there until they’re fully confirmed by the network. The mempool handles a few key steps of the process, including:

  1. Running a series of validation tests to ensure that the transaction will be successful once submitted to a miner. Some of the validations the node might perform include: Are there available funds to cover the cost of gas? Is the transaction signature valid? Is the nonce next in order for this given sender address?

  2. Ordering the list of transactions to be processed based on their gas prices. Higher gas prices mean the transaction will likely be prioritized by the miner.

  3. Sharing the pending transactions with the mempools of peered nodes which then continue to forward to other mempools, allowing the entire network to view the list of pending transactions. When a block is mined, the transactions across the entire network with the highest gas prices will be confirmed.

Now that we’ve covered the mempool, what steps are involved in sending a transaction from a user to permanently storing this transaction on the blockchain?

  1. A user generates a new transaction, signs the transaction with their private key, and sends it to a node on the blockchain by calling the method eth_sendTransaction or eth_sendRawTransaction as exposed, typically via a service like Alchemy’s Supernode API.

  2. The transaction is sent to the mempool of a node.

  3. The mempool runs a series of validation tests. If the transaction passes these validations it’ll enter a pending state.

  4. The node will broadcast the transaction to the other nodes in the blockchain, where it will end up in their corresponding mempools.

  5. Once a new block is mined by a node on the blockchain, the ~200 pending transactions with the highest gas prices will be included into the next block on the blockchain. These transactions will be removed from the mempool, and the new block and mempool state propagated through the network

  6. After 5 - 7 more blocks are confirmed, the chances of the blockchain re-organizing to follow another fork of blocks (with a different set of confirmed transactions) become vanishingly small. At this point, it’s safe to assume that the transaction is permanently on the blockchain.

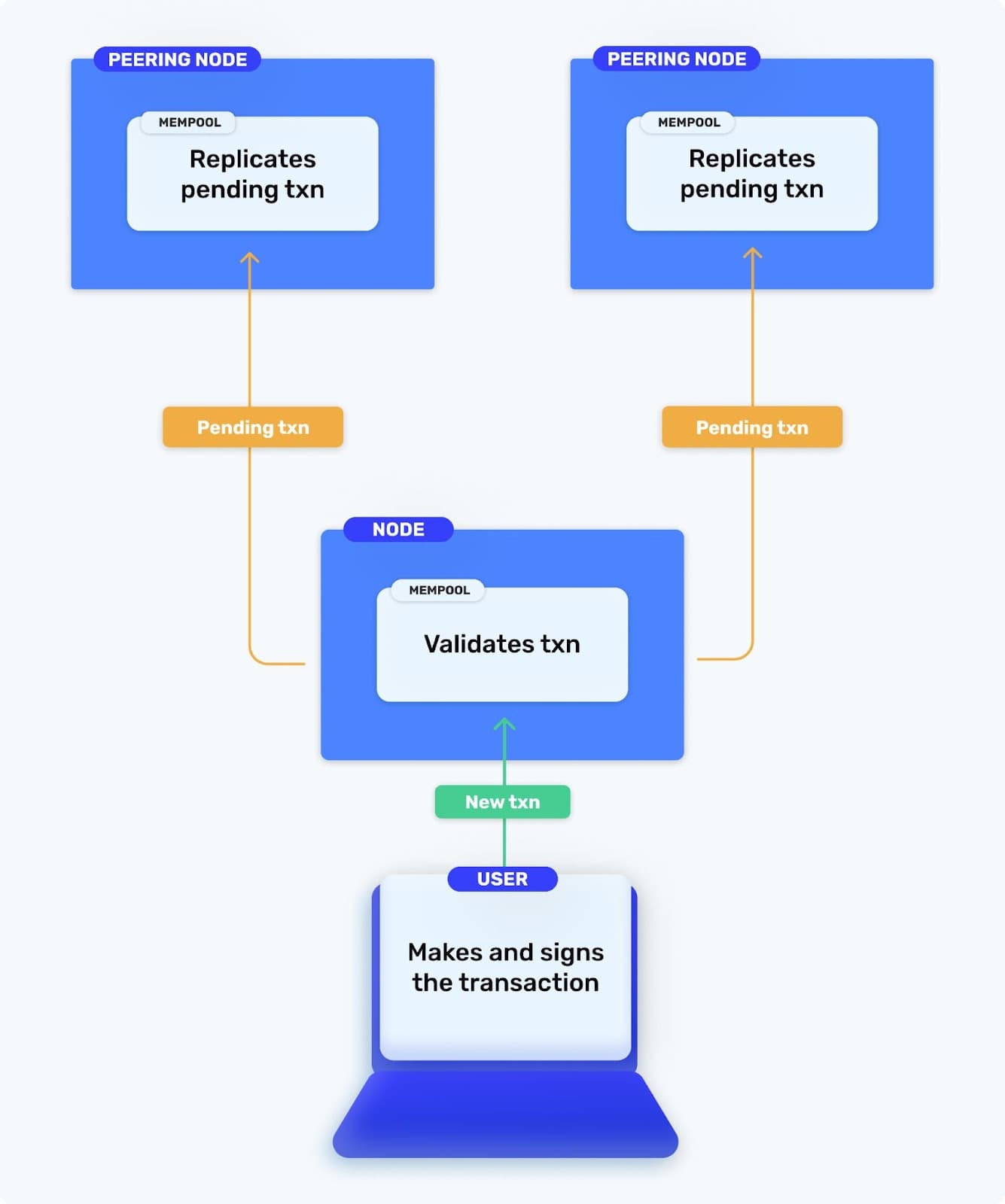

Ethereum transaction flow
Ethereum transaction flow

Let’s start simple. There’s limits to the size of the mempool (unless you’re using a tool like Alchemy!), both across the entire node and per address in the node. Typically for Geth, it’s 4096 pending transactions, and Geth will drop older pending transactions in favor of newer ones.

When you make a transaction, you’ll need to include a variety of relevant parameters, such as:

  • What’s the sending address and destination address?

  • What’s the value to be transferred?

  • How much gas am I willing to use for the transaction?

  • What should the current nonce for my transaction be?

If you’ve made a mistake entering these, the node will typically return an error code explaining the issue. If you can’t understand the error message or find the answer via Google, feel free to shoot us a message on Discord and we’ll try to help you out!

To determine which transactions to prioritize, Ethereum transactions must be submitted with a gas price. Just like a regular auction, a higher gas price means your transaction is more likely to be included into the next block - and too low of a gas price means you might never make it onto the blockchain.

Because the gas price fluctuates rapidly and unpredictably over the course of a day based on demand, it’s very important that you set this field properly. You’ve got a few options here:

  • If you’re sending a single transaction manually, you can visit the ETH Gas Station website to view the most recent gas prices and set your price accordingly.

  • If you’re sending requests to a node provider like Alchemy,  the Ethereum JSON-RPC spec exposes an endpoint called eth_estimateGas that gives you an estimate of how much gas you’ll need to get your transaction mined! You can use this to automate setting gas prices programmatically.

  • If you’d like to receive push notifications when gas prices rise above or fall below a certain price, we provide a tool called Gas Price Notifications in Alchemy Notify that can alert you specifically in those situations! Because it’s a webhook, it’s quite simple to integrate into your code to automatically send transactions when gas prices are low.

Ah, the burning question in everyone’s head - what the heck is a nonce and why do I need it?? Totally valid question and we’re glad you asked.

Quite simply, the nonce is the number of transactions sent from a given address. If you’ve successfully confirmed five transactions (nonces 0-4), the nonce of your next pending transaction will be 5.

Nonces follow a few rules:

  • Nonces must occur in order. A transaction with nonce 4 will occur strictly before a transaction with nonce 5.

  • Nonces can’t be duplicated or skipped - there’s exactly one nonce per successful transaction. If you don’t have a transaction with nonce 5, you can’t submit one with nonce 6. SImilarly, you can’t submit two transactions with nonce 5 - only one will go through.

Why do we need them? Nonces are necessary from a cryptographic perspective to ensure that transactions from a given address happen in the order that you sent them, and that your transactions are protected from the double-spend issue

In practice, the nonce is simply a parameter that you must set when you create a transaction. This allows you to have fine-grained manual control over the order of your transactions.

For a real-life example, say you want to buy an NFT from a marketplace and then send a small “finder’s fee” to Bob for helping you discover it. In this case, you’d only want to pay Bob if you successfully bought the NFT. Without nonces, you’d have no way to submit both transactions AND ensure they occurred in a particular order. Using nonces, you can simply label one transaction with nonce N, and one with nonce N + 1!

However, this fine-grained control means you need to submit your transactions with the correct nonce every time! If your transaction is stuck, you’ll need to check your nonce to make sure it’s properly set according to the rules described above.

You’ll love this one: even if your transaction successfully is mined, you’re still not in the clear 😡 .

Because the blockchain is decentralized, different sets of nodes in the network might have different views of the network. In particular, occasionally two miners will mine a new block at roughly the same time, and peering nodes will hop onto the two new chains at the same rate. In that case, the two new chains will grow in parallel - but eventually one of them will gain just a little more consensus!

When the entire network swaps to one of the chains and abandons the second one, the transactions already “mined” on the old chain become forked and therefore invalid. The forked blocks are also referred to as an “uncle blocks”.

That means that even after you’ve mined your transaction, it could still be invalidated by a block fork! You can see a history of forked blocks on Etherscan here. Luckily on Ethereum mainnet they’re not very common and typically are under 5 blocks deep, but that’s why your transaction is never “fully” confirmed by a DeFi trading protocol until after 5 - 7 block confirmations minimum.

Say you sent a transaction forty minutes ago to the mempool of a node, but you haven’t seen it confirmed on the blockchain. You’d like some information about its current status, the gas price you sent it with, and the nonce to double-check it. What do you do?

Accessing the state of your mempool transactions was (and still is) a mess. Because the only interface into the status of your mempool is via the Ethereum JSON-RPC API, developers were spending hours querying the various nodes they sent transactions to, merging and sifting through pages of logs, and trying to rebuild the entire state of their mempool by hand - all for a single query.

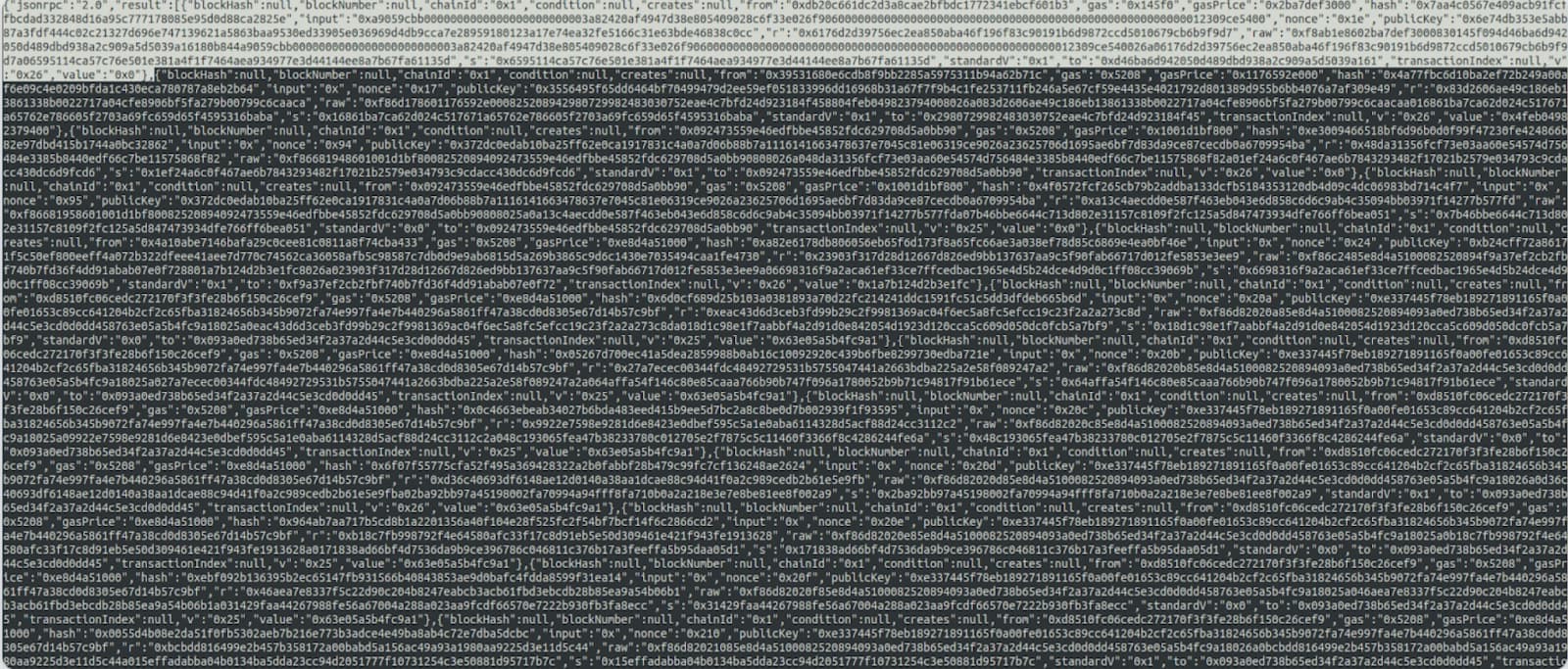

This is what the average call to a busy mempool looks like:

Have fun reading through this mess.
Have fun reading through this mess.

What’s worse, when developers start sending their requests to multiple nodes for scale, there are serious consistency issues - since transactions originate from  a single node, requests for a particular transaction need to be sticky routed to the same node every time you interface with it.

In response to these challenges, we built the Mempool Watcher - a tool that simplifies a lot of this complexity. First, we handle all the node routing so that even though you might be leveraging dozens of nodes of scale, your mempool always appears as a single entity - with mempool requests properly routed to the correct node within our infrastructure.

Second, we give you some very nice tools to provide a real-time view of the status of your transactions. Transactions are marked as mined, pending, or dropped. Each transaction record includes the duration that the transaction spent pending, the amount of gas required, and access to additional details.

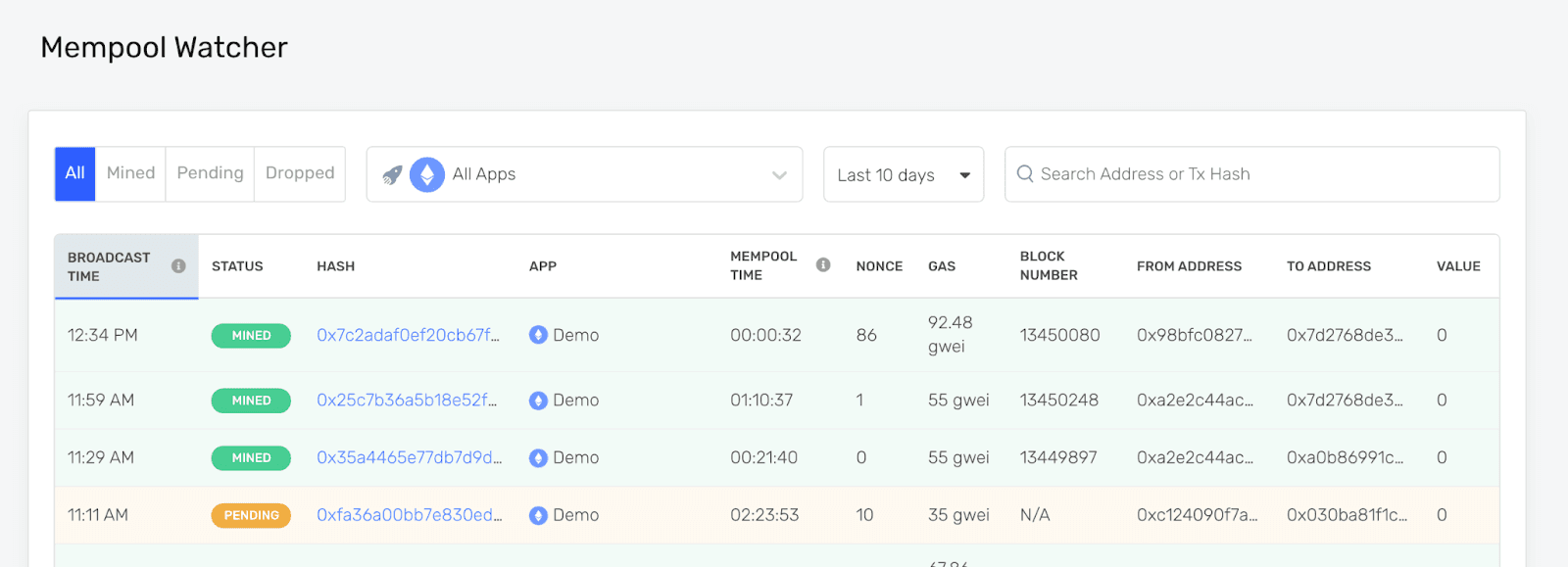

Here’s what your view into the mempool looks like with our tooling!
Here’s what your view into the mempool looks like with our tooling!

What if you’ve sent out twenty different transactions to a node simultaneously via a script, but you see that some of them are failing to even reach the node? How might you track the failing responses and find patterns to determine the cause?

Similar to above, typically as a developer you’d need to trawl through pages of logs to determine a pattern. In response, we’ve built a request / response explorer tool that lets you track the status of JSON-RPC requests sent through our API!

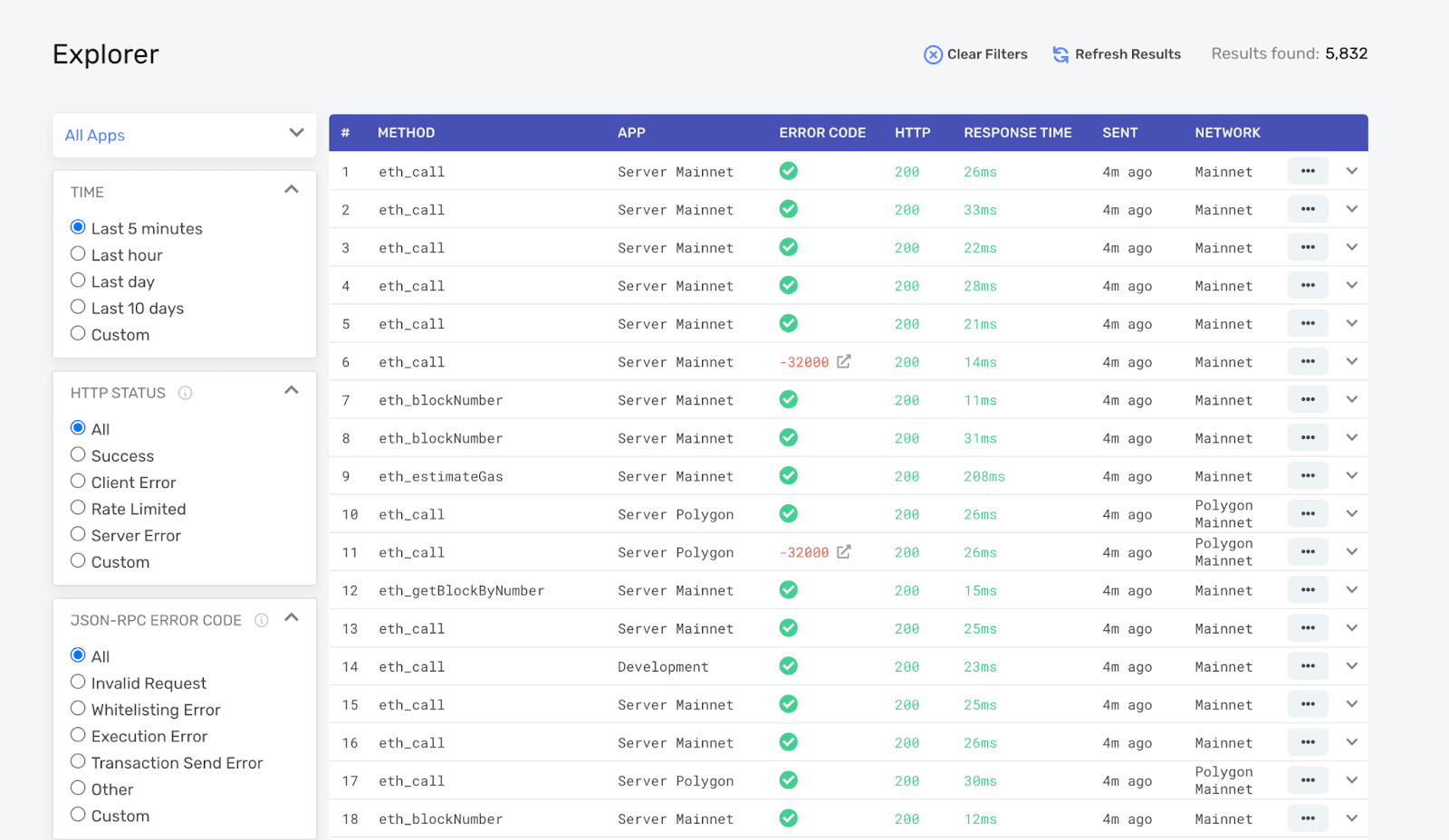

The Alchemy Explorer
The Alchemy Explorer

Our Alchemy Explorer allows you to search through historical requests and responses sent through our infrastructure anywhere from 1 second to 7 days ago! No more log-hunting - you’ve got modern technology at your fingertips.

On these requests, you can filter the queries by all sorts of parameters, such as the type of method, HTTP responses, or node-specific errors! You can see requests based on their timestamps, the duration of the request, and many more options.

Alchemy is a node provider, which means we manage all the infrastructure associated with sending and receiving requests to the Ethereum blockchain (among a few others!). Here’s some information on why you need a node provider.

Once you’re sending your requests through our system, you get all the benefits we’ve discussed above for pending transactions: a scalable mempool, dashboard tooling, gas price webhooks.

On top of that, we’ll give you:

  • Access to Supernode, our proprietary node infrastructure that solves scalability and consistency issues that plague the blockchain.

  • Access to our Dashboard, which helps you build and monitor your applications by providing tools to explore your requests like those discussed above.

  • Access to Alchemy Notify, a tool providing push notifications (webhooks) for events such as transactions happening on the blockchain.

  • Access to our Enhanced APIs, which allow you to make requests from the blockchain that are otherwise computationally expensive or impossible.

  • And plenty more, including access to these features across a variety of chains such as Flow, Crypto.org, and L2s such as Polygon, Optimism, and Arbitrum!

Unlocking Alchemy’s Supernode and developer tools is insanely simple  - in fact, it should only be a single line of code! If you've been using web3.js or ethers.js, it's as simple as creating an Alchemy account for free, generating an API key, and replacing the instantiation with something like this:

const web3 = createAlchemyWeb3("https://eth-mainnet.alchemyapi.io/");

If you'd like a full tutorial, check out our Getting Started With Alchemy documentation here! And finally, we're always available to help 24/7 on our Alchemy Discord. Stop by and say hi - we'd love to help you on your journey in blockchain development!
